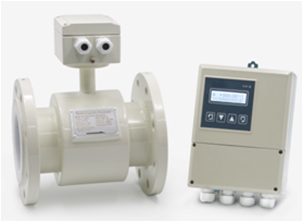

RMAG Series Electromagnetic Flowmeter transmitter, together with magnetic-inductive sensor, forms a microprocessor-controlled accurate measurement unit. RMAG Series transmitter can be used for fluid flow velocity up to 15 m/s for a minimum conductivity of 5 S/cm. The main application of RMAG Series widely use in many fields:

Chemical and petroleum industry

Metallurgy industry

Water and waste water

Agriculture and irrigation

Food and beverage industry

Pharmaceutical industry

Features

Various liner can be selected that satisfies most industrial applications.

Flow Velocity range:0-12 m/s, with good results for low flow applications

It comes any flanges such as, ANSI, DIN, JIS …etc.

It excellent for high pressure application.

Protection class: IP68 is available, and the sensor can sink into the water.

FEP Liner suitable in vacuum tube.

High accuracy of +/-0.5% of reading(or+/-0.2% of reading)

With Forward/Reverse flowrate measure function.

Specification

DN (mm):	10, 15, 20, 25, 32, 40, 50, 65, 80, 100,125, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1600, 1800, 2000
Measuring Range:	Velocity 0 - 0.25 m/s min. and 0 - 12 m/s max.
Conductivity:	more than 5 uS/cm
Accuracy:	+/-0.5% of reading (Velocity>=0.5 m/s), +/-0.0025 m/s (Velocity < 0.5 m/s), +/-0.2% of Reading
Max. Pressure:	350 Kg/cm2
Temperature:	-10 ~ +60 C (Polyurethane), -20 ~ +70 C (Neoprene), -40 ~ +180 C (FEP), -40 ~ +180 C (PTFE)
Electrode & Grounding:	Stainless Steel 316L, Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum, Tungsten Carbide, Monel
Lining Material:	Polyurethane(25-600 mm), Neoprene(50-2000 mm), FEP(6-300 mm), PTFE(25-800 mm)
Measuring Tube:	Stainless Steel 304
Coil Housing:	Carbon Steel (standard), Stainless Steel 304(Option), Stainless Steel 316(Option)
Flange:	Carbon Steel (standard), Stainless Steel 304(Option), Stainless Steel 316(Option)
Flanges Type:	JIS, DIN, ANSI and others as option
Ambient Temperature:	-25 to +60 Deg. C
Cable Entry:	2 M20x1.5
Grounding Resistance:	Must be less then 10 Ω
Protection:	IP 65, IP67 and IP68
